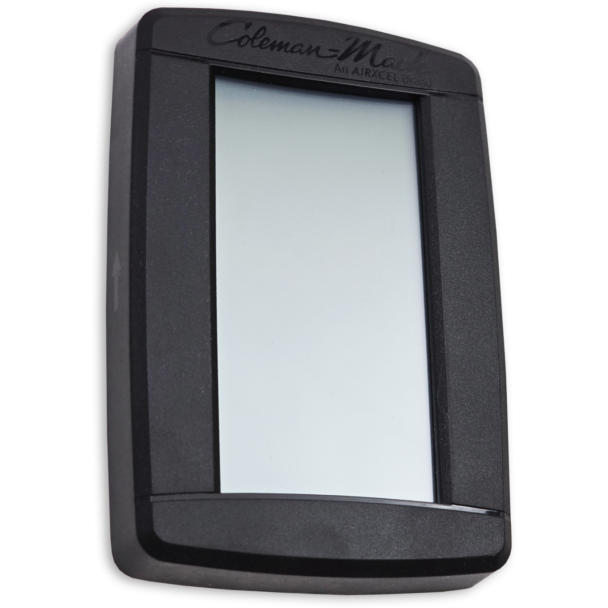

9420-330 | Coleman-Mach | Multi-Zone Wall Thermostat | Black | RV-C

New Coleman-Mach multi-zone wall thermostat. Comes with instruction manual, wall mounting plate, mounting screws & anchors (4), wire harness & zone 1 resistor.

Features & Benefits

• Control up to 4 AC/Heating zones
• Easy to read digital touch display
• Built-in room temperature sensor for Zone 1
• Diagnostic Status LED with colors and flashing patterns for easy diagnosis
• MaxxFan / Ventilation controls built in.
• RV-C protocol communication

Operational Specs

• Operating Voltage range: 9-16 VDC
• Max Voltage: 20VDC
• Standby Current: 13mA
• Operational Current Draw: Less than 50 mA with outputs off.
• Storage Temp Range: -22F to 176F (-30C to 80C)
• Operational Temp Range: -13F to 158F (-25C to 70C)
• Display Temperature Range: 45F to 99F (8C to 37C)
• LCD diagonal length: 4.3"
• Terminating Resitor (built-in): 120 Ohm

Product Compatibility

This thermostat is compatible with:

• 9430-754 Cool Only Netzone Control Kit
• 9430-758 Cool/Heat Netzone Control Kit
• 9630-758 Heat Pmp Netzone Control Kit
