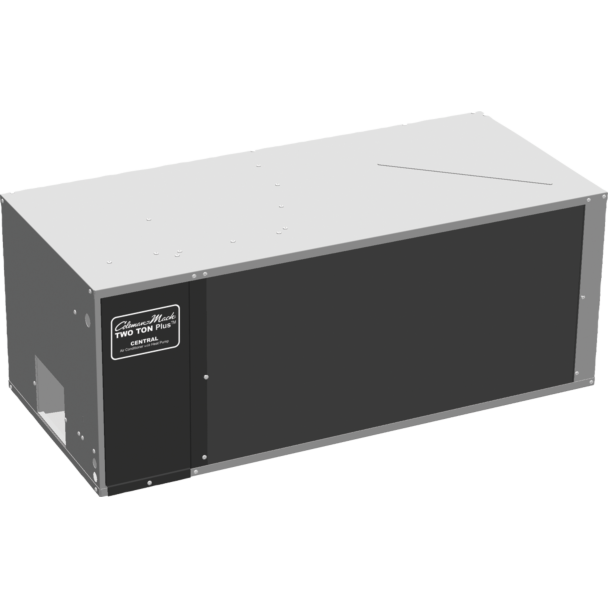

46515-611 | 2 Two TON Plus Basement Air Conditioner / HP 24,000 BTU
- Buy 3 for $3,896.86 each and save 5%

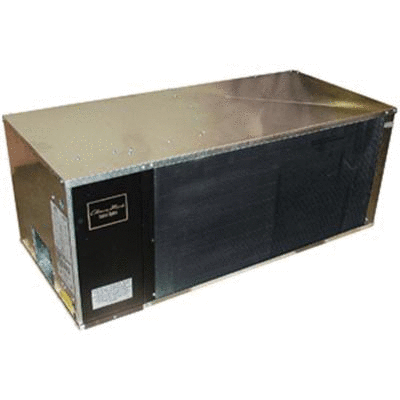

The Two Ton PLUS™ is unique because it features two 13,500-BTU compressors in a single packaged unit. It automatically cycles on one or both compressors, as required, to meet your air conditioning or heating needs. In the heating mode, the 2 Ton PLUS™ uses electricity to provide heat when temperatures are moderate. Two Tons Plus, Central Air Conditioner, With Heat Pump.
The Two Ton PLUS™ Central Air Conditioner. You won't see it on your RV, because this alternative to rooftop air conditioners installs (non roof mounted) completely out of sight on or underneath the floor of your RV.
You can customize the installation to locate the unit where it works best in your particular RV application, and can also tailor the air distribution system to fit your design requirements. It also contributes to a lower center of gravity, enhancing the overall stability of the vehicle.
The 2 Ton PLUS. is unique because it utilizes two compressors in a single, self-contained package. When cooling requirements are moderate, it uses only one compressor. When additional cooling is needed, you get the additional benefit of a second compressor.
coleman mach two ton plus
This unit is a replacement for the following models: 6535-671, 6535-871, 6535A871, 6535B871, 6535C871, 6535D871, 6636-871, 6636A871, 6636B871, 6636C871, 6636D871, 6535-671, 6535-871, 6535a671, 6535A871, 6535B871, 6535C871, 6535D771, 6535D871, 6636D771, 46515-611
Some old models listed above require modifications before replacing. If unsure, contact us for more info.
| Mfg Part # | 46515-611 |
|---|---|
Documentation | |
| Limited 2 Year AC Warranty | DOWNLOAD |
| Evaluating AC Performance | DOWNLOAD |
| Parts List | DOWNLOAD |
| Data Sheet | DOWNLOAD |
Specifications | |
| Weight (lbs) | 200 |
| Electrical Rating | 115 VAC, 60Hz, 1 Phase |
| Full-Load Heating Amps | 2,630 (Stage 1 & 2 at ARI Standard Running Conditions) |
| Standard Running Watts | 2,950 (Stage 1 & 2 at ARI Standard Running Conditions) |
| Air Delivery CFM | 600 @ .4 External Static |
| Heat Pump | Yes |
| Model Number Changes | 6535-671 |
