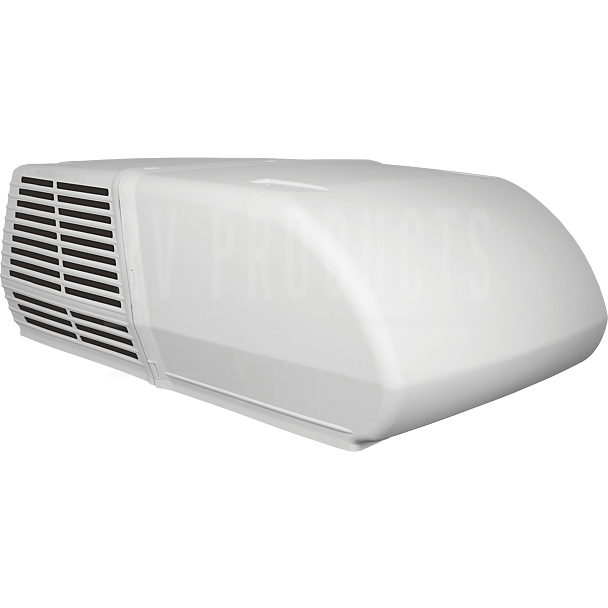

Coleman-Mach | 38203-066 | 13,500 BTU | 120V Air Conditioner | Textured White
- Buy 3 for $764.71 each and save 5%
The Signature Series
The Gold Standard for Coleman-Mach ACs
The signatures series embodies the innovation and quality that built the name Coleman-Mach over the last 55 years. Get superior cooling performance, the highest quality components, and more profile options than the competitors.
13,500 BTU/h Air ConditionerAmerica's over-the-road best seller!
One of the best RV air conditioning values available. Featuring a large evaporator and condenser coils with raised lance fins to help dissipate heat, has a solid 13,500 nominal BTU cooling capacity, and delivers 320 CFM (cubic feet per minute) airflow. All-copper tubing and gas-flux brazed joints ensure durability and long life for your RV air conditioner. Add the optional Heater Assembly, and you'll have 5,600 BTUs of heat for cool-weather outings.
| Mfg Part # | 38203-066 |
|---|---|
Documentation | |
| Installation, Operation & Maintenance | DOWNLOAD |
Specifications | |
| Height | Standard (13.8") |
| Weight (lbs) | 79.5 |
| BTUs | 13,500 |
| Heat Strip BTUs | 5,600 |
| Electrical Rating | 115 VAC, 60Hz, 1 Phase |
| Full-Load Cooling Amps | 13.2 |
| Full-Load Heating Amps | 16 |
| Standard Running Watts | 1528 |
| Running watts w/ heat strip | 1,800 |
| Air Delivery CFM | 320 |
| Color | Textured White |
| Heat Pump | No |
| Power Saver | No |
| Condensate Pump | No |
| Soft Start | No |
| Model Number Changes | This unit is a replacement for the following models: 48203C866 Some old models listed above require modifications before replacing. If unsure, contact us for more info. |
