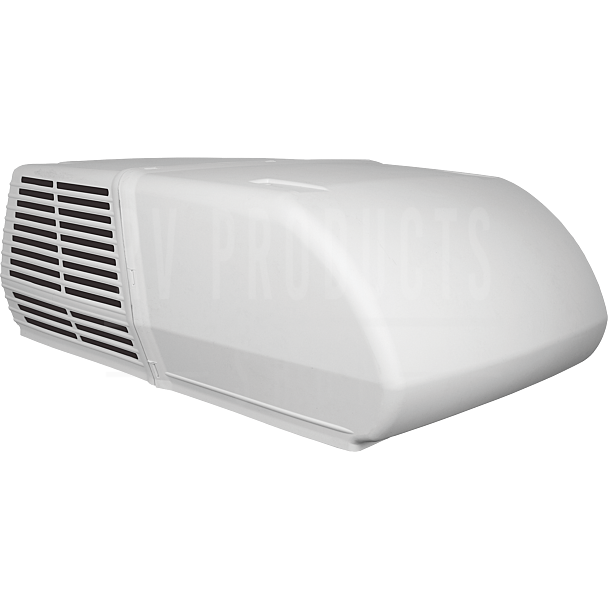

Coleman-Mach | 38204-066 | 15,000 BTU | 120V Air Conditioner | Textured White
- Buy 3 for $931.91 each and save 5%
The Signature Series
The Gold Standard for Coleman-Mach ACs
The signatures series embodies the innovation and quality that built the name Coleman-Mach over the last 55 years. Get superior cooling performance, the highest quality components, and more profile options than the competitors.
15,000 BTU/h Air ConditionerTaking cooling power to the MAX by offering the highest cooling output available.
The world's most powerful RV air conditioner with the highest cooling output you can buy, and has an airflow so strong, it's a sure bet for ducted systems.
| Mfg Part # | 38204-066 |
|---|---|
Documentation | |
| Product Literature | DOWNLOAD |
| Limited 2 Year AC Warranty | DOWNLOAD |
| Evaluating AC Performance | DOWNLOAD |
| Installation, Operation & Maintenance | DOWNLOAD |
Specifications | |
| Height | Standard (13.8") |
| Weight (lbs) | 85 |
| BTUs | 15,000 |

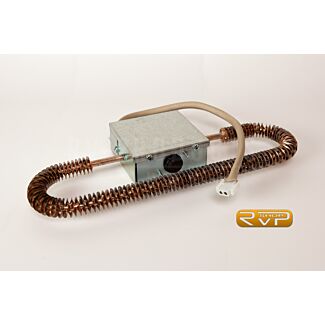

| Heat Strip BTUs | 5,600 |
| Electrical Rating | 115 VAC, 60Hz, 1 Phase |
| Full-Load Cooling Amps | 14.9 |
| Full-Load Heating Amps | 16 |
| Standard Running Watts | 1611 |
| Running watts w/ heat strip | 1800 |
| Air Delivery CFM | 320 |
| Color | Textured White |
| Heat Pump | No |
| Power Saver | No |
| Condensate Pump | No |
| Soft Start | No |
| Model Number Changes | This unit is a replacement for the following models: 48204-066 Some old models listed above require modifications before replacing. If unsure, contact us for more info. |
